Haunted HP Extended Damping Rods - CRF110 / KLX110
Couldn't load pickup availability
Haunted HP Extended Damping Rods
All CRF110F (13-Present)
All KLX110 & DRZ110
Fits the KLX110 L Model but no change in travel

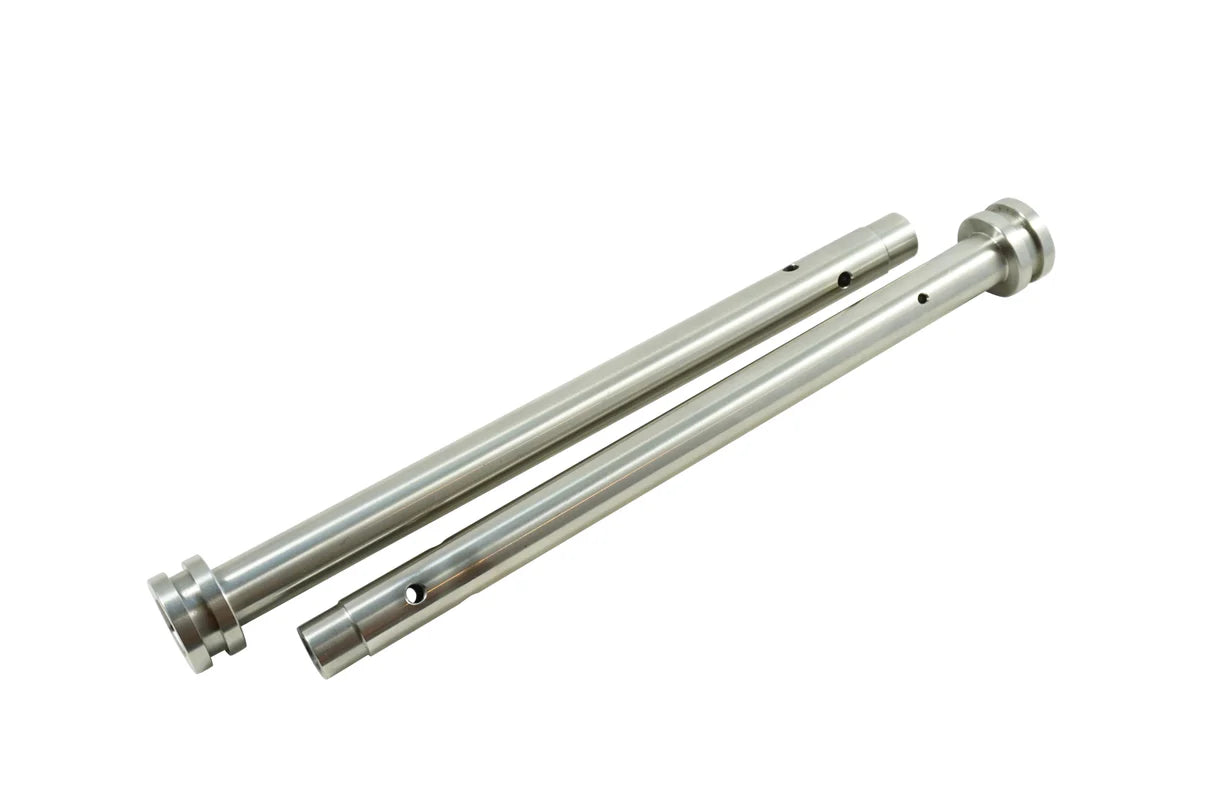

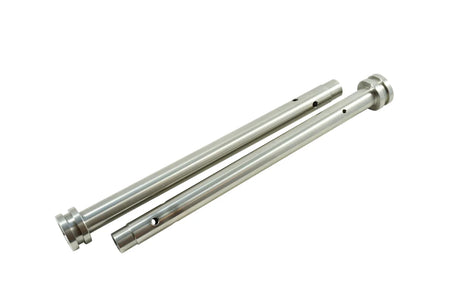

These front fork damping rods replace the stock damping rods to increase travel and provide increased damping control for adult sized riders. Slows rebound and increases compression damping for a firmer more controlled ride. Be sure to consider a longer brake cable for the increased height.
CRF110 and KLX110 Damping Rods
-
Increased travel and dampening
-
Increases travel by 1.5" on KLX110 or 1" on CRF110
-
CNC machined from 304 Stainless Steel
-
1-Year warranty against bending or breaking
Install Recommendation and Specs:
When using the extended damping rods please use the following as you baseline setup. Measurements provided are from the top of the tube with springs out and forks compressed. We suggest 20wt oil for all riders.
CRF110 = 140mm from the top (approx 5.5oz of fluid)
KLX110/DRZ110 = 89mm from the top
TTR110 = 92mm from the top
Attn CRF110 owners!!!
