JTI

NEW!!! JTI KLX140 to YZ85/65 Triple Clamp

Out of stock
Regular price $ 578.00 USD

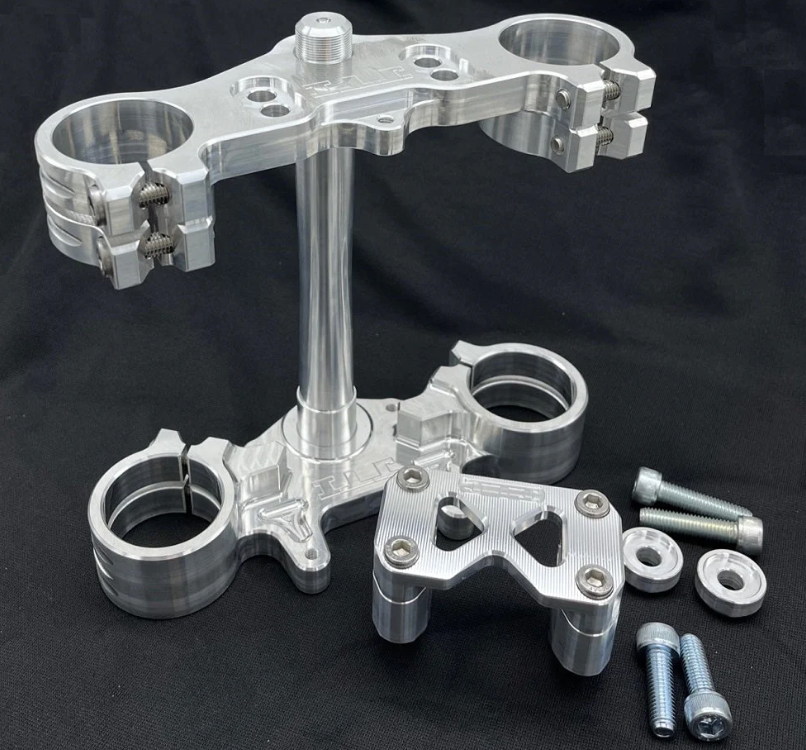

These clamps were developed to provide you with the ultimate KLX140 front suspension set-up, allowing you to mount several USD (inverted) forks on your KLX140.  Designed to be directly compatible with all years of YZ85 or YZ65 complete front ends (forks/wheel/brake/fender/number plate) and KX85/KX100 (forks, wheel, brakes) and give you the correct offset.  Several other combinations are possible with or without wheel and brake spacers.  We are still testing various set-ups so be sure to email us with any questions.  Just think, not only can you have some great USD forks, but also the biggest brake rotors you can mount on a KLX140 (up to 260mm) and dual-piston calipers!  These clamps feature partially split clamps, upper and lower opposing, for superior clamping force combined with improved strength.  The 7/8" bar clamp provides (8) different bar positions to not only give adult riders more room for your knees, you can also fine tune the handle bar location to your liking.  Our standard risers provide +7mm and +17mm over stock height.  Our optional Short Risers provide -2.5mm and +7.5mm heights.  Choose Standard or Short risers when you order.  (Not compatible with CR forks)

Features include:

  • CNC machined 6061 & 7075 billet aluminum
  • (4) forward bar positions
  • (2) bar heights:  +7mm and +17mm over stock height (optional -2.5mm and +7.5mm)
  • 10mm interlocking spacers supplied

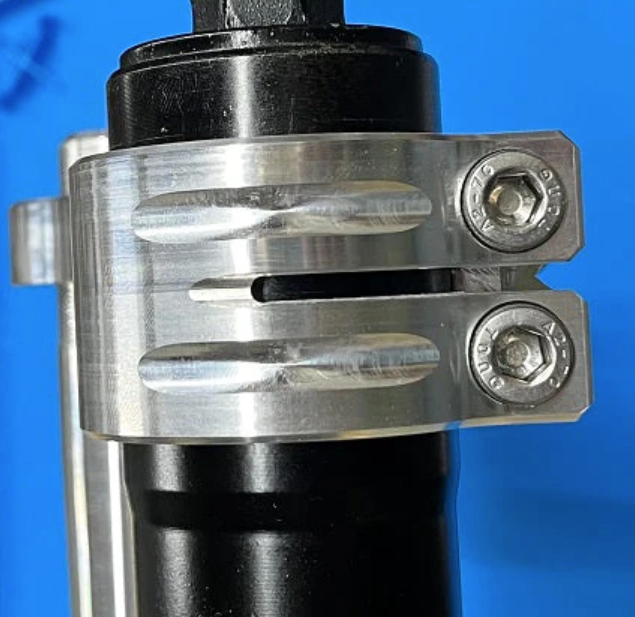

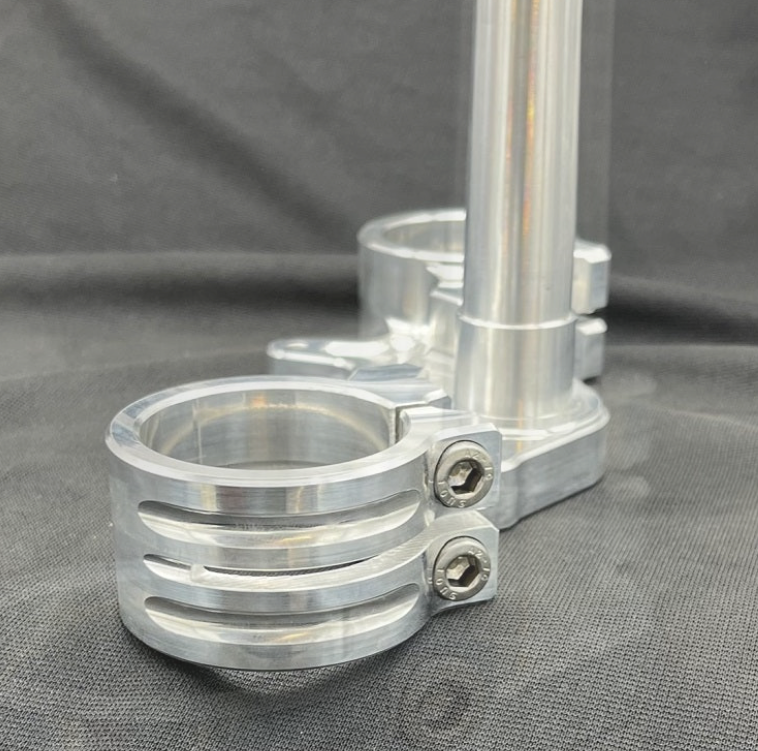

  • Partially split clamps with double fork tube pinch bolts

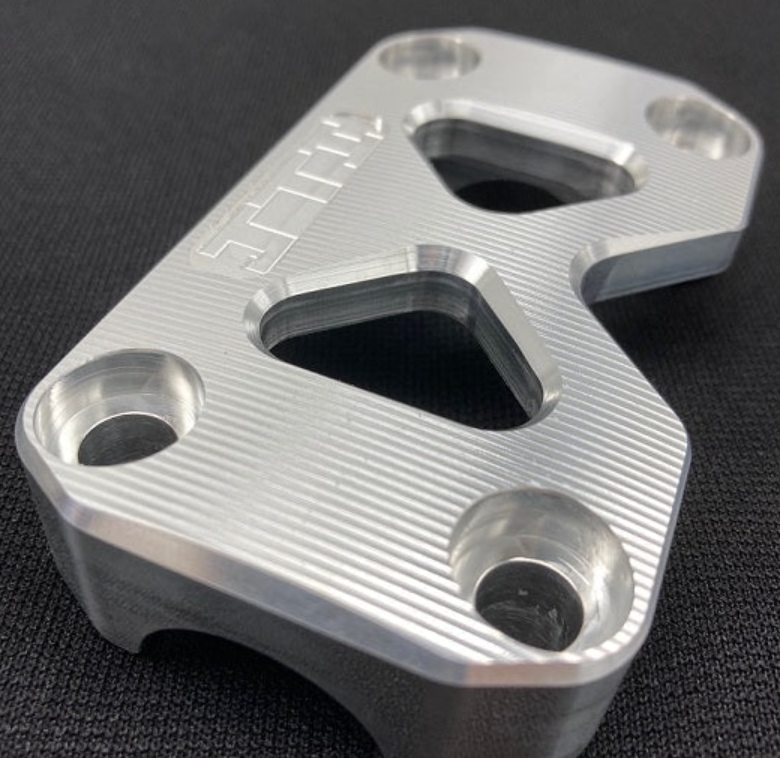

  • Bar clamps lock into the top clamp for added support
  • Fits stock and aftermarket 7/8" handlebars
  • Easy installation - all hardware is included
  • Confirmed Fork Fitment - YZ85 / YZ65 all years, KX85/KX100 all years, YZ80 1998+
  • Compatible with YZ85 or YZ65 front fender and front number plate
  • All Balls tapered steering stem bearings included (lower installed)
  • Actual Forks not included

Fits:  2008-Present Kawasaki KLX140 all models



100% MADE IN THE USA
