Nibbi Performance Carburetors - PE24/PE26/PE28/PE30

Nibbi Carburetors come hard anodized black. This helps with corrosion resistance, wear resistance, insulation, heat resistance and hardness/strength of the carburetor. The air passage starts out anodized then transitions into a smooth polished finished for optimal power and smooth consistent power. The lightweight hardware is also anodized. Another huge benefit is the splash guard that keeps the engine operating smooth under bumpy riding. Making them an AMAZING value overall!

Nibbi PE Series Key Features

• Perfected simple design.
• Polished round slide for improved throttle response, overall smoothness, and stability in use.
• Air Passage is mostly polished smooth for more power and consistency
• Lightweight anodized hardware.
• Huge splash guard for smooth operation.
• Anodized, which greatly improves the corrosion resistance, wear resistance, insulation, heat resistance and hardness or strength of the carburetor.

Note:

• Make sure the air fuel screw is 1.5 turns out from bottom before you start tuning.
• Proper manifold and throttle cable will be needed for each individual model.

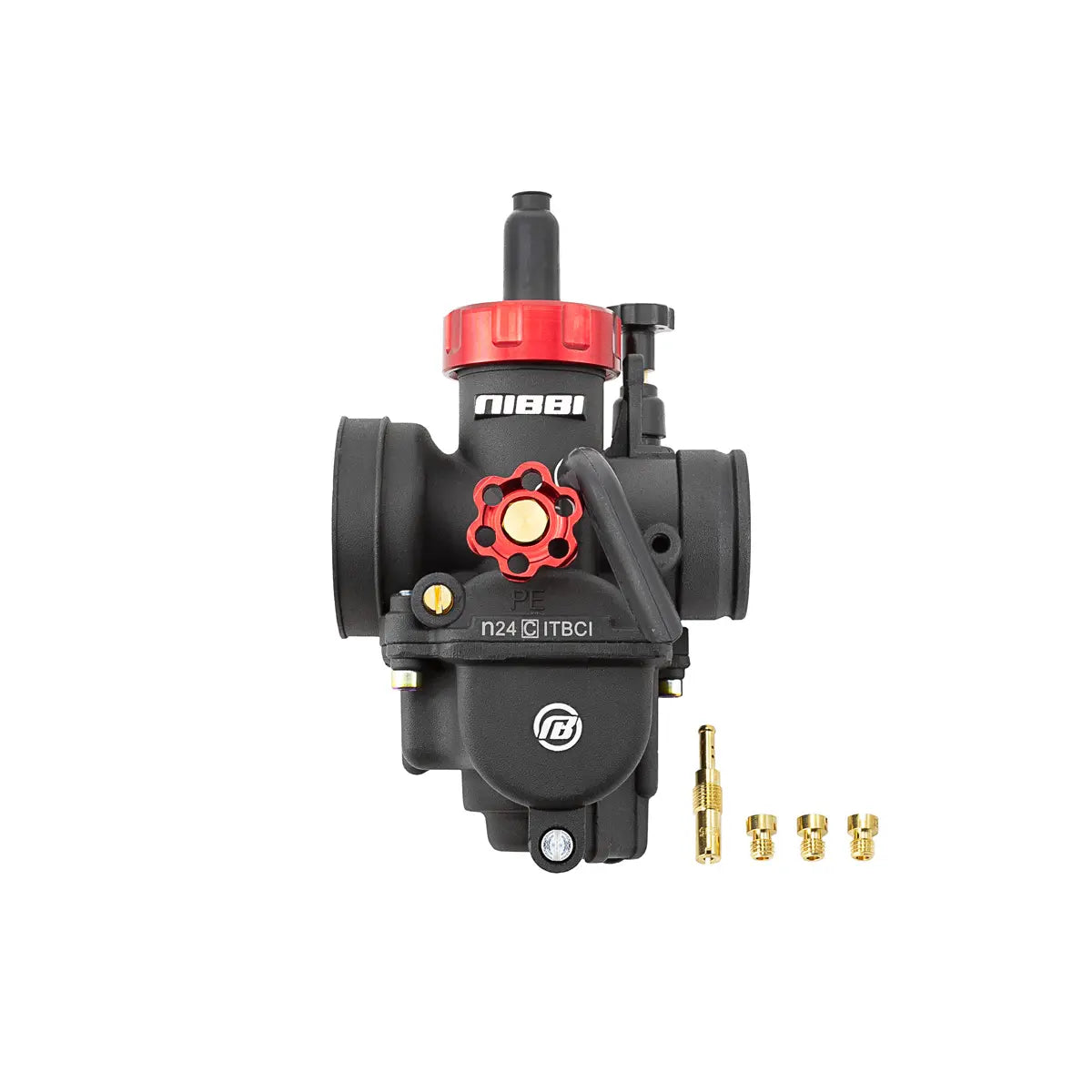

PE24 Specifications:

• Jets installed from factory – 40/105
• Includes Main Jet #100 #102 #108
• Includes Pilot Jet #35


Supporting Parts:

• 46mm air filter - TBW0491 (This 49mm will work – We have 46mm air filters coming soon!)
• 30mm OD spigot – TB Parts NEW intake boot – TBW1740
• Main Jet kit - TBW0327
• Pilot jet kit - TBW0363

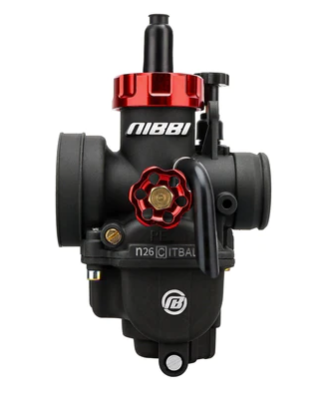

PE26 Specifications:

• Jets installed from factory – 40/110
• Includes Main Jet #112 #108 #105
• Includes Pilot Jet #35


Supporting Parts:

• 48mm air filter - TBW0491
• 33mm OD spigot intake boot - TBW0432
• Main Jet kit - TBW0327
• Pilot jet kit - TBW0363

PE28 Specifications:

• Jets installed from factory – 40/115
• Includes Main Jet #118 #112 #110
• Includes Pilot Jet #35


Supporting Parts:

• 49mm air filter - TBW0491
• 35mm OD spigot intake boot - TBW0432
• Main Jet kit - TBW0327
• Pilot jet kit - TBW0363

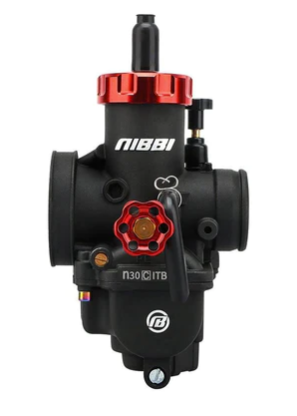

PE30 Specifications:

• Jets installed from factory – 40/115
• Includes Main Jet #122 #125 #130
• Includes Pilot Jet #35


Supporting Parts:

• 49mm air filter - TBW0491
• 35mm OD spigot intake boot - TBW0432
• Main Jet kit - TBW0327
• Pilot jet kit - TBW0363

Simple Design
Simple design with a round slide, a basic needle and jetting system.

Improved Throttle Response
The circular slide design provides better throttle response.
Due to the larger surface area of the circular slide, it allows the better airflow and more precise control over the amount of fuel and air delivered to the engine.

Smoother Operation
The circular slide provides smoother operation compared to other types of throttle slides, as there are no sharp edges or corners that can catch on the carburetor body.

Reduced Turbulence
The circular slide also helps to reduce turbulence in the carburetor, which can improve fuel atomization and combustion efficiency.

Multiple Adjustable Features
Air, fuel mixture, and idle speed, all have a range of adjustable features.
This allows for fine tuning of fuel delivery to optimize engine performance.

Enhanced Performance
The circular slide can help to improve engine performance, particularly in high-RPM applications where precise control over the fuel and air delivery is critical.

High-strength Materials
Constructed of aluminum and stainless steel high-strength materials, there is also an anti-oxidation layer.
It provides excellent durability under high pressure conditions.

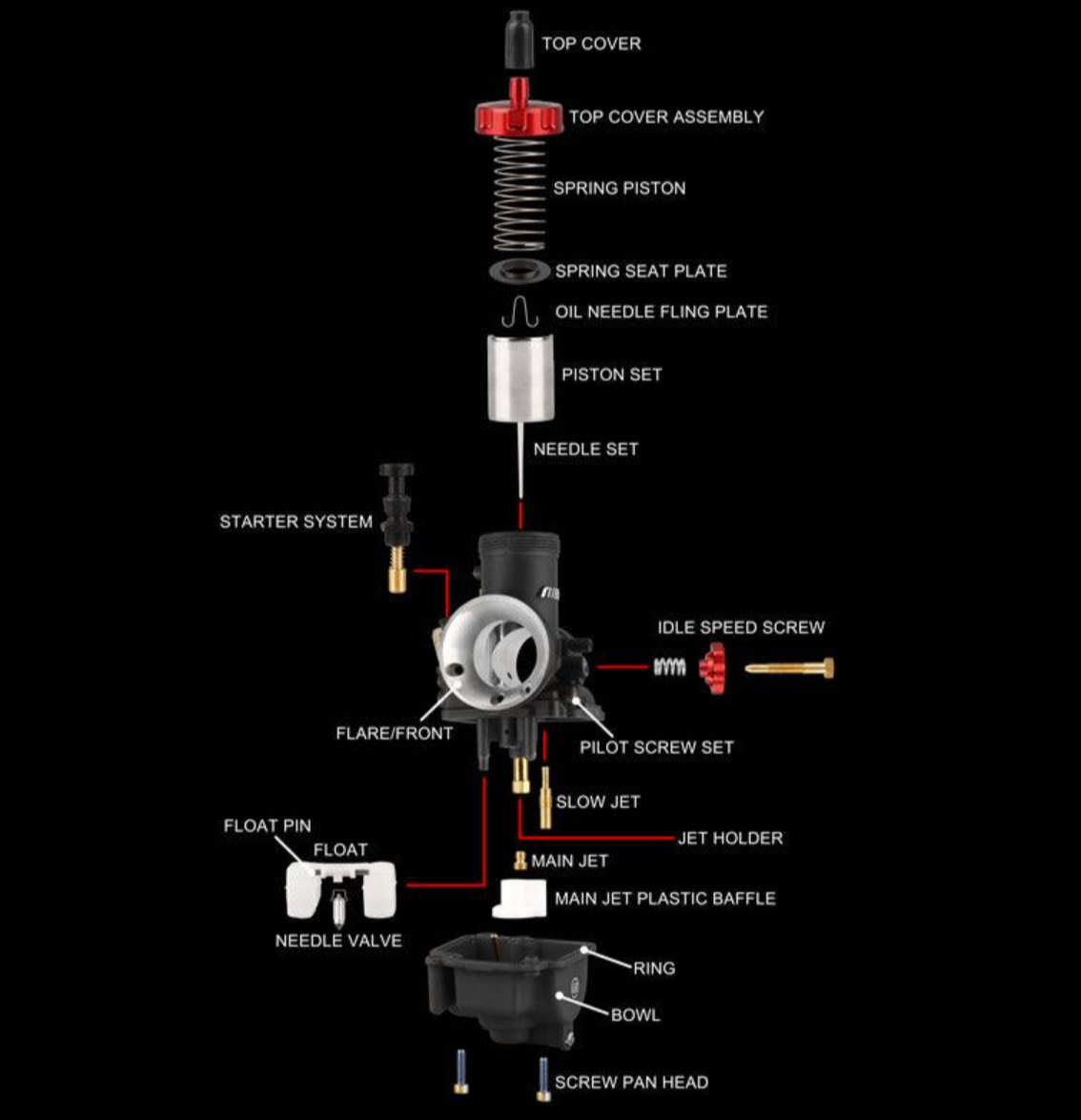

Easy Maintenance
The modular design allows for easy disassembly and maintenance.
This is especially important in racing applications where quick repairs and adjustments are often required.
