V1 Head Performance VM24 Carb Kit – Honda 50 & 70cc

TB parts VM24 Carb kit for the TB Parts V1 Race Head. This carb kit is for use with large 21mm port Honda style race heads like our V1 race head. For customers wanting another option rather than the Mikuni VM26, this VM24 is a very high end option for your 88-108cc setups.

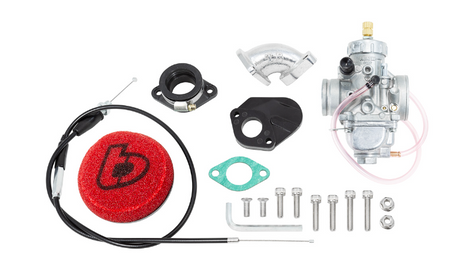

Kit includes

• Genuine Mikuni VM24 Carburetor
• Generic Honda style throttle cable
• Intake Manifold kit – 35mm Spigot mount on Carburetor side. 45mm center to center bolt patter for cylinder head. Center bore starts at 26mm on carb side and tapers down to 21mm on the cylinder head side.
• Matching Foam Air filter



Installation notes –

• We intended this kit for use with our V1 race head on the following model motorcycles – CRF50, XR50, Z50, CRF70, XR70, CT70, ATC70, TRX70, SL70, XL70.
• The CT70, ATC70, and TRX70 will need TBW0133 (sold separately)
• Combine with this rotating intake spacer for better fitment on most Pitbikes – TBW1487
• Pilot Jets TBW1357
• Main Jets TBW1353
